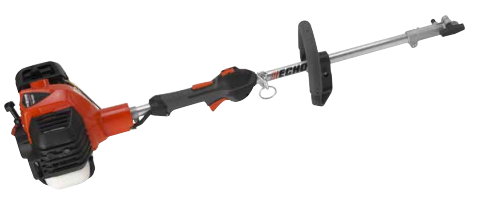

PAS-2620

General Information:

• Production Dates: 2017-Current
• MSRP: $359.99 (Suggested retail price. Subject to change without notice.)
• Model Number Breakdown: "PAS" Pro Attachment Series, "2620" The first two numbers are the engine cc size generally within, plus or minus 1 cc to 2 cc. The last two numbers are the sub-version within that model series
• Replaced Model: PAS-280
• Replaced By Model: N/A
• Uses & Applications: Designed for a variety of uses depending on the attachment
• Box Dimensions: Length: 43 in. Width: 12 in. Height: 12 in. Weight: 15 lb.
• Operator's/Safety Manuals, Parts Catalogs: In Business Portal, go to the "Search" tab and enter the model number in the “Item #” field. From there, select the correct document.
• Accessories: In the Knowledge Base, search the accessory name (for example, "attachment cap") and view the related article to confirm compatibility with this model.
• Attachments: In the Knowledge Base, search the attachment name (for example, "blower attachment") and view the related article to view compatibility with this model.

Features:

• 25.4 cc professional-grade, 2-stroke engine for outstanding performance and durability
• Tool-less, lead-in coupler allows for fast easy changes on multiple attachments
• Two-stage air filtration system dramatically increases cleaning capability and allows for longer maintenance intervals
• Bellow-style fuel transfer system provides for easy start-ability especially for re-stats in hot, dusty climates
• Vibration-reduction system increases operator comfort
• Versatility with up to 15 different tool types

Technical Specifications: For more details on specifications, torque limits, service limits, and special tools, refer to the attached "Service Data."

• Length: 40.7 in.
• Width: 10.7 in.
• Height: 10.2 in.
• Weight: 9.9 lb.
• Engine Type: Air cooled, two-stroke, single cylinder gasoline engine
• Engine Displacement: 25.4 cc
• Bore: 1.34 in.
• Stroke: 1.1 in.
• Compression Ratio: 7.6:1

• Ignition Type: CDI (Capacitor discharge ignition)
• Spark Plug: NGK CMR-7H

• Starter: Automatic rewind starter
• Fuel Tank Capacity: 20.6 fl. oz.
• Exhaust: Spark arrestor muffler with catalyst
• Clutch: Centrifugal type
• Drive Shaft: Flexible shaft
• PTO Shaft:
• Gear Case Ratio: 1.62:1
• Idle Speed: 3,000 RPM
• Wide Open Throttle Speed: 11,200 RPM
• Compression Pressure: 112-168 PSI
• Primary Coil Resistance: (This model does not have a primary coil resistance because it uses a special spark advance system. Therefore, no primary resistance readings are available for this unit.)
• Secondary Coil Resistance: 780-1180 ohms
