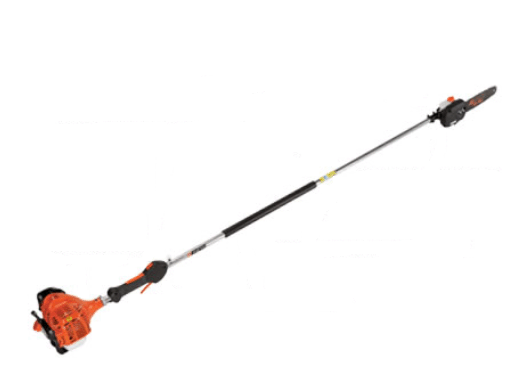

PPF-225

General Information:

• Production Dates: 2017-Current
• MSRP: $429.99 (Suggested retail price. Subject to change without notice.)
• Model Number Breakdown: "PPF" Power Pruner Fixed (shaft), "225" The first two numbers are the engine cc size generally within, plus or minus 1 cc to 2 cc. The last number is the sub-version within that model series
• Replaced Model: PPF-210
• Replaced By Model: N/A
• Uses & Applications: Designed for tree trimming and pruning from the ground
• Box Dimensions: Length: 83 in. Width: 12 in. Height: 12 in. Weight: 21 lb.
• Operator's/Safety Manuals, Parts Catalogs: In Business Portal, go to the "Search" tab and enter the model number in the "Item #" field. From there, select the correct document.
• Accessories: In the Knowledge Base, search the accessory name (for example, "shoulder harness") and view the related article to confirm compatibility with this model.

Features:

• 21.2cc professional-grade, 2-stroke engine for outstanding performance and durability
• 7 ft. 9 in. long with 3 ft. extensions available provides extended reach for easy limbing with your feet on the ground
• i-30™ starting system reduces starting effort by 30%
• Rubber front and rear hand grips deliver extreme user comfort
• Side-access chain tensioner for easy chain adjustments

Guide Bars & Chains:

• 10" (Standard):
  • Guide Bar - Part #10A0CD3739C
  • Chain - Part #90PX39CQ
• 10":
  • Guide Bar - Part #10A4CD3739C
  • Chain - Part #91VXL39CQ
• 12":
  • Guide Bar - Part #12A0CD3744C
  • Chain - Part #90PX44CQ
• 12":
  • Guide Bar - Part #12A4CD3744C
  • Chain - Part #91VXL44CQ

Technical Specifications: For more details on specifications, torque limits, service limits, and special tools, refer to the attached "Service Data."

• Length: 94.4 in.
• Width: 9.88 in.
• Height: 9.29 in.
• Weight: 15.1 lb.
• Engine Type: Air cooled, two-stroke, single cylinder gasoline engine
• Engine Displacement: 21.2 cc
• Bore: 1.27 in.
• Stroke: 1.02 in.
• Compression Ratio:

• Ignition Type: CDI (Capacitor discharge ignition)
• Spark Plug: NGK BPM-8Y

• Starter: Automatic rewind starter
• Fuel Tank Capacity: 14.9 fl. oz.
• Oil Tank Capacity: 6.6 fl. oz.
• Oiling System: Automatic
• Sprocket Type: Spur, 6-tooth, 3/8" pitch
• Exhaust: Spark arrestor muffler with catalyst
• Clutch: Centrifugal type
• Idle Speed: 3,000 RPM
• Wide Open Throttle Speed: 10,900 RPM
• Compression Pressure: 140 PSI
• Primary Coil Resistance: N/A (This model does not have a primary coil resistance because it uses a special spark advance system. Therefore, no primary resistance readings are available for this unit.)
• Secondary Coil Resistance: 780-1180 ohms
