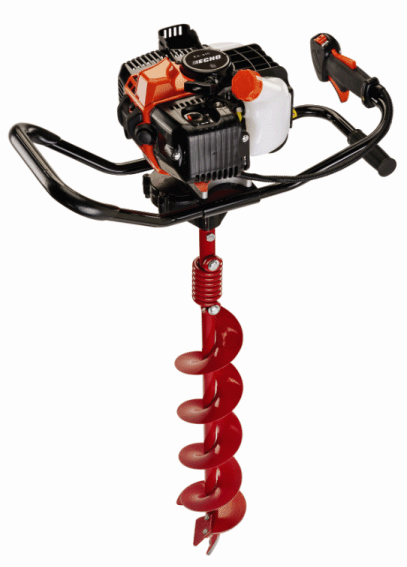

EA-410

General Information:

• Production Dates: 2009-Current
• MSRP: $769.99 (Suggested retail price. Subject to change without notice.)
• Model Number Breakdown: "EA" Earth Auger, "410" The first two numbers are the engine size generally within, plus or minus 1 cc to 2 cc. The last number is the sub-version within that model series
• Replaced Model: EA-500
• Replaced By Model: N/A
• Uses & Applications: Designed to drill through earth, snow and ice
• Box Dimensions: Length: 20 in. Width: 13 in. Height: 19 in. Weight: 26 lb.
• Operator's/Safety Manuals, Parts Catalogs: In Business Portal, go to the "Search" tab and enter the model number in the "Item #" field. From there, select the correct document.
• Accessories: In the Knowledge Base, search the accessory name (for example, "auger bit") and view the related article to confirm compatibility with this model.

Features:

• 42.7 cc professional grade 2 stroke engine for outstanding performance and durability
• Designed for a wide variety of auger diameters
• Augers available from 2 in. to 10 in. (sold separately)
• Heavy duty handle and frame assembly reduces vibration for greater operator comfort
• Drills through earth, snow and ice versatile performance for a wide variety of conditions
• 34 in. or 36 in. auger lengths available
• Versatile handle design for either 1 or 2 person operation
• Incredible drilling torque 30.2:1 gear reduction will make quick work of any hole digging operation
• 8 in. and 10 in. ice augers available for year round use

Technical Specifications: For more details on specifications, torque limits, service limits, and special tools, refer to the attached "Service Data."

• Length: 23.0 in.
• Width: 10.6 in.
• Height: 14.6 in.
• Weight: 21.6 lb.
• Engine Type: Air cooled, two-stroke, single cylinder gasoline engine
• Engine Displacement: 42.7 cc
• Bore: 1.58 in.
• Stroke: 1.34 in.
• Compression Ratio: 6:1

• Ignition Type: CDI (Capacitor discharge ignition)
• Spark Plug: NGK BPM-7A

• Gear Case Ratio: 30.2:1
• Starter: Automatic recoil starter
• Fuel Tank Capacity: 33.8 fl. oz.
• Exhaust: Spark arrestor muffler
• Idle Speed: 3,000 RPM
• Wide Open Throttle Speed: 3,600 RPM
• Compression Pressure: 119 PSI
• Primary Coil Resistance: N/A (This model does not have a primary coil resistance because it uses a special spark advance system. Therefore, no primary resistance readings are available for this unit.)
• Secondary Coil Resistance: 2.0-2.8 ohms
