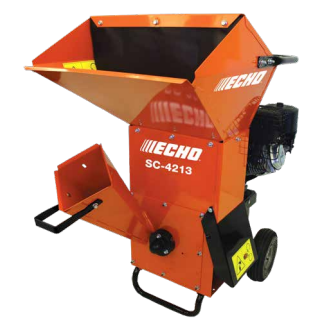

SC-4213

This engine is manufactured by Briggs & Stratton. Any inquiries relating to the engine, including parts, sales, service, or technical documentation, visit the following link to locate a Briggs & Stratton: https://www.briggsandstratton.com/na/en_us/support/dealer-locator-engines.html?icid=dealer_redirect_eng

General Information:

• Production Dates: 2020-Current
• MSRP: $3,099.99 (Suggested retail price. Subject to change without notice)
• Model Number Breakdown: "SC" Shredder Chipper, "4213" The first three numbers are the engine cc size generally within, plus or minus 10cc. The last number is the chipping diameter capacity
• Replaced Model: N/A
• Replaced By Model: N/A
• Uses & Applications: Designed for use chipping and shredding hoppers for two different types of material. The chipping hopper, with blades mounted to a flywheel, chips branches up to 3" in diameter. The shredding hopper, with free-swinging trimmer blades, pulverizes lightweight material and garden waste up to 3/4" thick
• Box Dimensions: Length: 44 in. Width: 36 in. Height: 31 in. Weight: 283 lb.
• Operator's/Safety Manuals, Parts Catalogs: In Business Portal, go to the "Search" tab and enter the model number in the "Item #" field. From there, select the correct document.
• Accessories: Search for the article titled "What accessories are available for the ECHO® chipper/shredders?"

Features:

• 420cc Briggs and Stratton engine delivers maximum chipping power and long-lasting durability
• 14-gauge, welded steel construction provides high durability unlike the bolts used in competitive models
• 3 in. capacity chipping shoot able to handle just about any yard waste
• 2 handle locations for easy transportation and control over rough terrain
• Heavy-duty, 7-gauge steel, medium coarse debris screen three other discharge screen size available to fit a wide range of applications
• Reversible, heat-treated chipping and shredding blades provide extended wear capability and increased durability
• 10 in. flat-free, foam-filled, maintenance-free tires offer worry-free mobility
• 9.6 in. x 22 in. shredder hopper wide access to handle materials up to 3/4 in. diameter

Technical Specifications: For more details on specifications, torque limits, service limits, and special tools, refer to the attached "Service Data."

• Length: 45.00 in.
• Width: 25.00 in.
• Height: 46.00 in.
• Weight: 263 lb.
• Engine Type: Air cooled, four-stroke, single cylinder gasoline engine
• Engine Displacement: 420 cc
• Maximum Chipper Capacity: 3 in. diameter
• Chipper Blades: 2 Reversible (3.125 in. x 2 in. x 0.25 in.)
• Maximum Shredder Capacity: 3 in.
• Shredder Knives: 12
• Rotor Speed: 3,600 RPM
• Rotor Size: 11 in. diameter
• Rotor Weight: 27 lb.
• Drive Type: Belt
• Drive Belt Size: 29 in.
• Tires: 410/350 4 in. (foam-filled)
• Engine: Briggs & Stratton® XR Professional Series™
• Fuel Tank Capacity (For SN 220SCB000001 to 220SCB000430): 3.2 qts./0.8 gal
• Fuel Tank Capacity (For SN 220SCB000431 to 220SCB999999): 6.97 qts./1.7 gal
• Starter: Recoil
• Spark Arrestor Equipped: No
