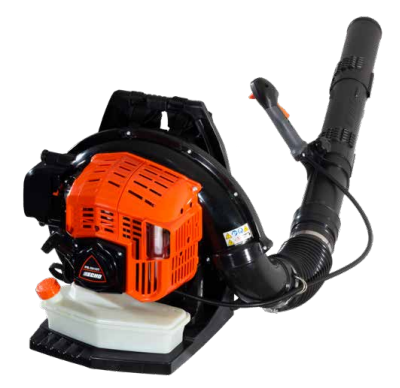

PB-5810H/PB-5810T

IMPORTANT SAFETY RECALL

In cooperation with the U.S. Consumer Product Safety Commission, ECHO® Inc. is recalling certain backpack blowers. These products were sold from May 2024 through June 2024 throughout the United States by independent ECHO® dealers. The fuel supply line can leak gas and pose a fire hazard. If you have a tool affected by a recall, please stop using the tool immediately and contact your local ECHO® dealer for repair of your blower. The models and serial number ranges of these products are:

PB-5810H: P61312001001-P61312002590

PB-5810T: P61212001001-P61212004155

General Information:

• Production Dates: 2024-Current
• MSRP: $429.99 (Suggested retail price. Subject to change without notice.)
• Model Number Breakdown: "PB" Power Blower, "5810" The first two numbers are the engine cc size generally within, plus or minus 1 cc to 2 cc. The last two numbers are the sub-versions within that model series, "H" Hip (Throttle is located at the hip), "T" Tube (Throttle is located at the tube)
• Replaced Model: N/A
• Replaced By Model: N/A
• Uses & Applications: Designed to clean up leaves, grass clippings, dust
• Box Dimensions:
  • PB-5810H: Length: 21.75 in. Width: 15.37 in. Height: 20.00 in. Weight: 24.40 lb.
  • PB-5810T: Length: 21.75 in. Width: 15.37 in. Height: 20.00 in. Weight: 24.40 lb.
• Operator's/Safety Manuals, Parts Catalogs: In Business Portal, go to the "Search" tab and enter the model number in the "Item #" field. From there, select the correct document.
• Accessories: In the Knowledge Base, search the accessory name (for example, "rain gutter kit") and view the related article to confirm compatibility with this model.

Features:

• 59.7 cc profession-grade engine for outstanding performance and durability
• 44% reduction in starting effort
• Pleated, automotive-style air filter provides superior air filtration for long engine life
• Variable-speed with cruise control offers operator convenience
• Leaf guard keeps debris out of fan intake
• Padded backrest and shoulder straps provide operator comfort
• Posi-Loc pipes for a secure connection and maximum durability
• Exclusive vented back pad provides colling air that circulates around the use for comfort in hot weather

Technical Specifications: For more details on specifications, torque limits, service limits, and special tools, refer to the attached "Service Data."

• Length:
  • PB-5810H: 14.3 in.
  • PB-5810T: 14.3 in.
• Width:
  • PB-5810H: 21.1 in.
  • PB-5810T: 18.7 in.
• Height:
  • PB-5810H: 17.9 in.
  • PB-5810T: 17.9 in.
• Weight:
  • PB-5810H: 17.9 lb.
  • PB-5810T: 19.2 lb.
• Engine Type: Air cooled- two-stroke, single cylinder gasoline engine
• Engine Displacement: 59.7 cc
• Bore: 1.9 in.
• Stroke: 1.3 in.
• Compression Ratio: 8.7

• Ignition Type: CDI (Capacitor discharge ignition)
• Spark Plug: NGK CMR-6H

• Starter: Automatic Rewind
• Fuel Tank Capacity: 48.7 US fl. oz.
• Exhaust: Spark arrester muffler
• Air Force: 27 Newtons
• Maximum Air Speed: 200 MPH
• Idle Speed: 2,700 RPM
• Wide Open Throttle Speed: 6,600 RPM
• Compression Pressure: 21.75-36.25 PSI
• Primary Coil Resistance: N/A (This model does not have a primary coil resistance because it uses a special spark advance system. Therefore, no primary resistance readings are available for this unit.)
• Secondary Coil Resistance: 760-1160 ohms
