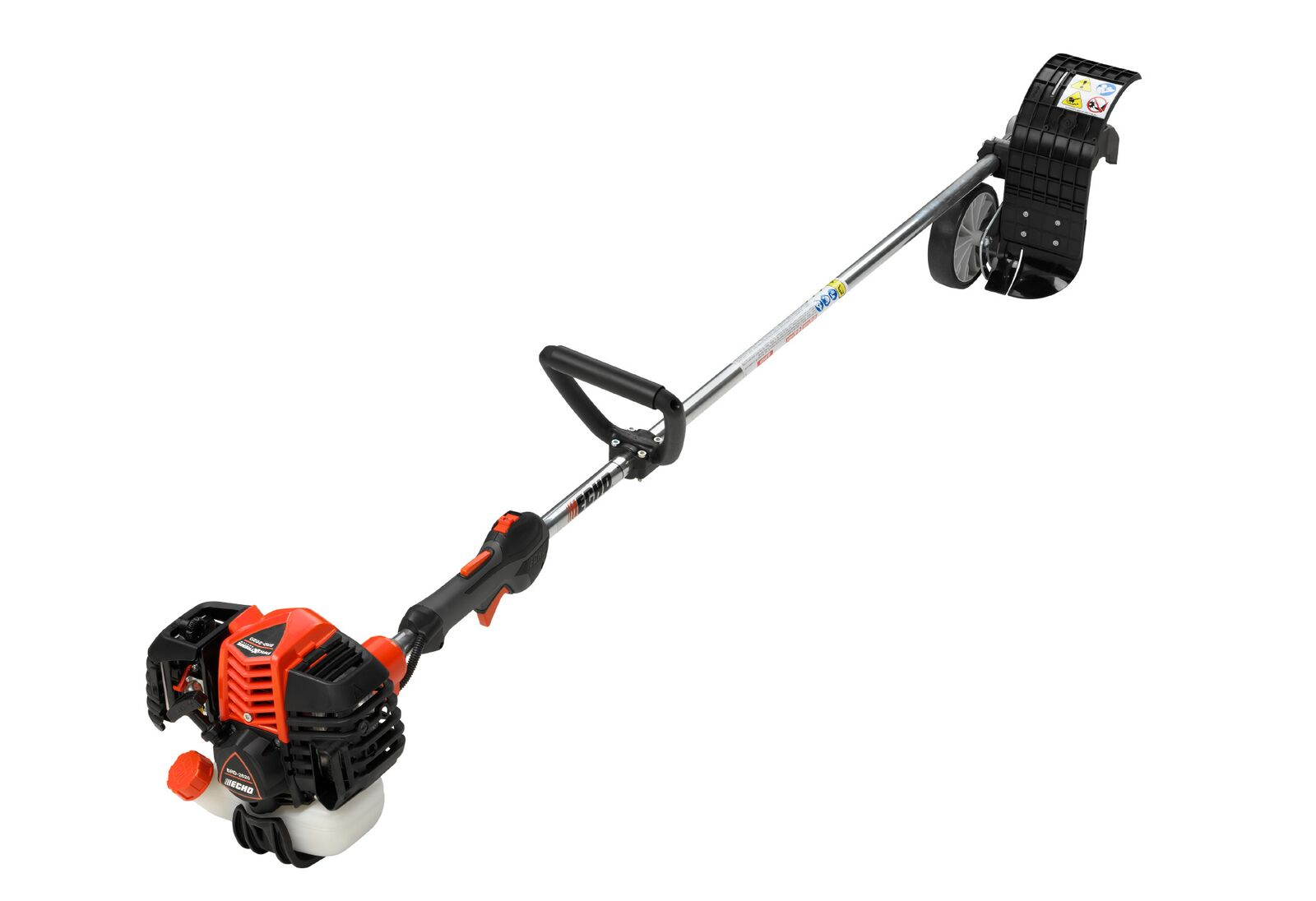

BRD-2620

General Information:

• Production Dates: 2017-Current
• MSRP: $649.99 (Suggested retail price. Subject to change without notice)
• Model Number Breakdown: "BRD" Bed Redefiner, "2620" The first two numbers are the engine cc size generally within, plus or minus 1 cc to 2 cc. The last number is the sub-version within that model series
• Replaced Model: BRD-280
• Replaced By Model: N/A
• Uses & Applications: Designed to create an edge along flower and mulch beds
• Box Dimensions: Length: 73 in. Width: 12 in. Height: 13 in. Weight: 26 lb.
• Operator's/Safety Manuals, Parts Catalogs: In Business Portal, go to the "Search" tab and enter the model number in the "Item #" field. From there, select the correct document
• Accessories: No accessories available for this model

Features:

• 25.4 cc professional grade 2 stroke engine for outstanding performance and durability
• Bellows-style fuel transfer system provides for easy start-ability especially for re-starts in hot, dusty climates
• Tool-less access air filtration system for easy and convenient in-field servicing
• 59 in. straight shaft with flex cable drive for extended reach and reduced vibration
• Large 20.6 fl. oz. see-through fuel tank for extended run time between fill-ups and easy fuel level checks
• Two-stage air filtration dramatically increases cleaning capability and allows for longer maintenance intervals
• Cast aluminum debris shield combined with high-impact nylon shield that reduces material kickback
• Replaceable, patented, 6-finger steel blade with brazed carbide tips that delivers durability and performance
• Large, adjustable support wheel for easy maneuverability

Technical Specifications: For more details on specifications, torque limits, service limits, and special tools, refer to the attached "Service Data."

• Length: 70.7 in.
• Width: 11.9 in.
• Height: 12.9 in.
• Weight: 17.7 lb.
• Engine Type: Air cooled, two-stroke, single cylinder gasoline engine
• Engine Displacement: 25.4 cc
• Bore: 1.339 in.
• Stroke: 1.102 in.
• Compression Ratio: 7.6

• Ignition Type: CDI (Capacitor discharge ignition)
• Spark Plug: NGK CMR-7H

• Starter: Automatic rewind
• Fuel Tank Capacity: 17.9 fl. oz.
• Exhaust: Spark arrestor muffler
• Clutch: Centrifugal
• Drive Shaft: Flexible
• Gear Case Ratio: 2.07
• Idle Speed: 2,900 RPM
• Wide Open Throttle Speed: 10,700 RPM
• Compression Pressure: 7.6
• Primary Coil Resistance: N/A (This model does not have a primary coil resistance because it uses a special spark advance system. Therefore, no primary resistance readings are available for this unit.)
• Secondary Coil Resistance: 780-1180 ohms
