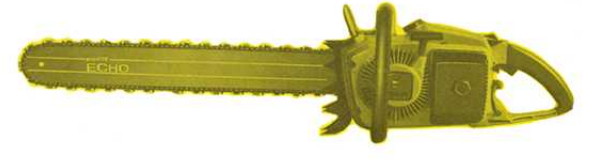

CS-1001VL

Modified on Mon, Nov 10, 2025 at 9:39 AM

General Information:

Production Dates: 1975-1980
MSRP: No MSRP due to age (Suggested retail price. Subject to change without notice.)
Model Number Breakdown: "CS" Chainsaw, "1001" The first two numbers are the engine cc size generally within, plus or minus 1 cc to 2 cc. The last two numbers are the sub-version within that model series
Replaced Model: N/A
Replaced By Model: N/A
Uses & Applications: Designed for felling trees and cutting wood
Box Dimensions: No box dimensions due to age
Operator's/Safety Manuals, Parts Catalogs: In Business Portal, go to the "Search" tab and enter the model number in the 'Item #" field. From there, select the correct document.
Accessories: Search for the article titled "What accessories are available for the ECHO® chainsaws?"

Features:

No features due to age

Guide Bars & Chains:

No guide bars or chains available due to age

Technical Specifications: There is no Service Data for this model. For more details on specifications, torque limits, service limits, and special tools, reach out to the Product Manager. Please copy Kristina Fink so any information obtained can be added to the Knowledgebase.

Length: N/A
Width: N/A
Height: N/A
Weight: 22.2 lb.
Engine Type: Air cooled, two-stroke, single cylinder gasoline engine
Engine Displacement: 99.7 cc
Bore: 2.017 in.
Stroke: 1.650 in.
Compression Ratio: N/A
Ignition Type: Flywheel magneto
Spark Plug: NGK BPM-7Y
Starter: Recoil starter
Fuel Tank Capacity: 36.5 fl. oz.
Oil Tank Capacity: 14.9 fl. oz.
Oiling System: Automatic adjustable
Vibration Reduction: Yes
Sprocket Type: Spur, 7-tooth, 3/8" pitch
Exhaust: Spark arrestor muffler
Clutch: Centrifugal
Idle Speed: 2,200-2,800 RPM
Wide Open Throttle Speed: 9,500-10,500 RPM
Compression Pressure: N/A
Primary Coil Resistance: N/A (This model does not have a primary coil resistance because it uses a special spark advance system. Therefore, no primary resistance readings are available for this unit.)
Secondary Coil Resistance: N/A
