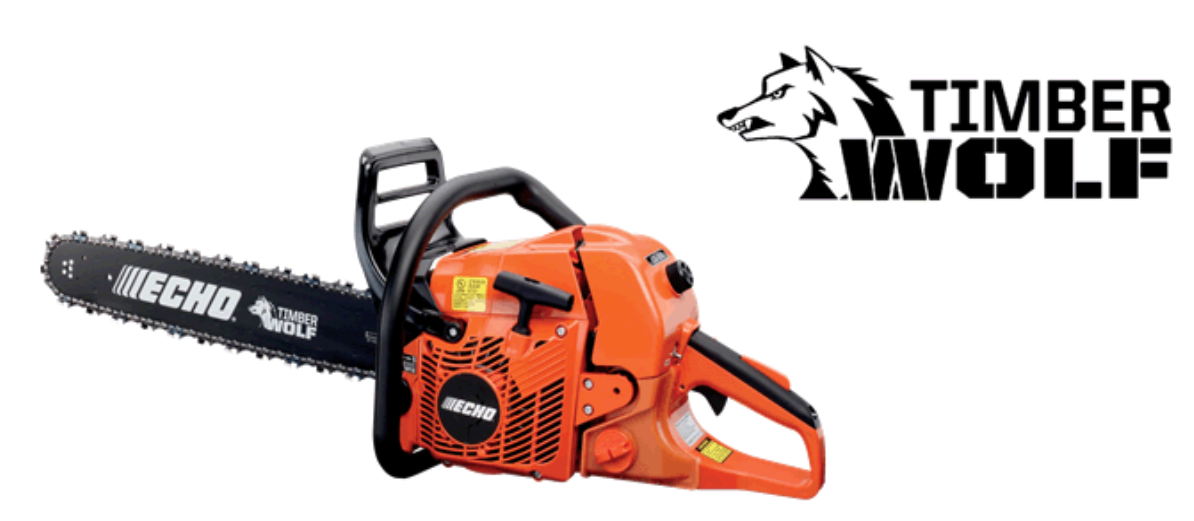

CS-590 Timber Wolf

General Information:

• Production Dates: 2013-Current
• MSRP: (Suggested retail price. Subject to change without notice)
  • CS-590-18": $419.99
  • CS-590-20": $429.99
  • CS-590-24": $439.99
• Model Number Breakdown: "CS" Chainsaw, "590" The first two numbers are the engine cc size generally within, plus or minus 1 cc to 2 cc. The last number is the sub-version within that model series
• Replaced Model: N/A
• Replaced By Model: N/A
• Uses & Applications: Designed for felling trees and cutting wood
• Box Dimensions:
  • CS-590-18": Length: 21 in. Width: 11 in. Height: 14 in. Weight: 21 lb.
  • CS-590-20": Length: 21 in. Width: 11 in. Height: 14 in. Weight: 21 lb.
  • CS-590-24": Length: 40 in. Width: 12 in. Height: 12 in. Weight: 24 lb.
• Operator's/Safety Manuals, Parts Catalogs: In Business Portal, go to the "Search" tab and enter the model number in the "Item #" field. From there, select the correct document.
• Accessories: Search for the article titled "What accessories are available for the ECHO® chainsaws?"

Features:

• 59.8 cc professional-grade, 2-stroke engine for outstanding performance and durability
• Decompression valve reduces rope-pulling effort for easier starts
• G-Force Air-Pre-Cleaner™ extends air filter life and reduces maintenance intervals
• Automatic, adjustable clutch-drive oiler operates when the chain is moving to reduce oil consumption
• Rear-mounted, heavy-duty two-piece air filter provides for easy access and easy cleaning
• Translucent fuel tank for quick level checks

Guide Bars & Chains:

• 16":
  • Guide Bar - Part #16D0PS3860
  • Chain - Part #72LPX60XCQ - 60 drive links, .050 in. gauge, 3/8 in. pitch, 7/32 in. file size
• 18" (Standard):
  • Guide Bar - Part #18D0AS3864C
  • Chain - Part #72LPX64CQ - 64 drive links, .050 in. gauge, 3/8 in. pitch, 7/32 in. file size
• 20" (Standard):
  • Guide Bar - Part #20D0AS3870C
  • Chain - Part #72LPX70CQ - 70 drive links, .050 in. gauge, 3/8 in. pitch, 7/32 in. file size
• 24" (Standard):
  • Guide Bar - Part #24D0AS3884C
  • Chain - Part #72LPX84CQ - 84 drive links, .050 in. gauge, 3/8 in. pitch, 7/32 in. file size
• 27":
  • Guide Bar - Part #27D0PS3893
  • Chain - Part #72LPX93CQ - 93 drive links, .050 in. gauge, 3/8 in. pitch, 7/32 in. file size

Technical Specifications: For more details on specifications, torque limits, service limits, and special tools, refer to the attached "Service Data."

• Length: 17.6 in.
• Width: 9.6 in.
• Height: 11.5 in.
• Weight: 13.2 lb.
• Engine Type: Air cooled, two-stroke, single cylinder gasoline engine
• Engine Displacement: 59.8 cc
• Bore: 1.772 in.
• Stroke: 1.480 in.
• Compression Ratio: 7.2

• Ignition Type: CDI (Capacitor discharge ignition)
• Spark Plug: NGK BPM-8Y

• Starter: Automatic rewind starter
• Fuel Tank Capacity: 19.3 fl. oz.
• Oil Tank Capacity: 10.1 fl. oz.
• Oiling System: Automatic adjustable
• Vibration Reduction: Yes
• Sprocket Type: Spur, 7-tooth, 3/8 in. pitch
• Exhaust: Spark arrestor muffler
• Clutch: Centrifugal
• Idle Speed: 2,800 RPM
• Wide Open Throttle Speed: 12,500 RPM
• Compression Pressure: 146 PSI
• Primary Coil Resistance: N/A (This model does not have a primary coil resistance because it uses a special spark advance system. Therefore, no primary resistance readings are available for this unit.)
• Secondary Coil Resistance: 1.5-2.9 ohms
