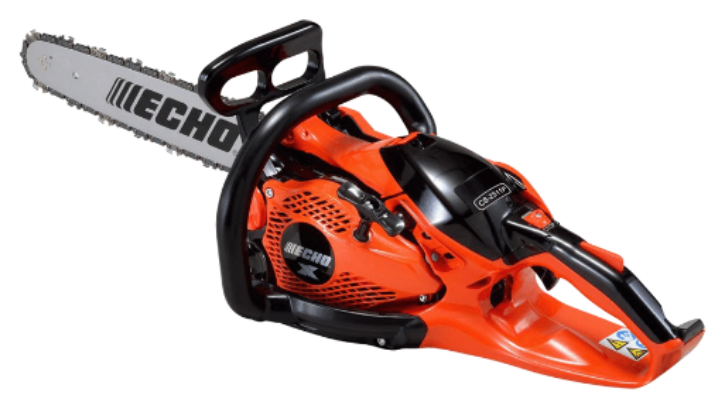

CS-2511P

General Information:

• Production Dates: 2020-Current
• MSRP: (Suggested retail price. Subject to change without notice)
  • CS-2511P-12": $399.99
  • CS-2511P-14": $409.99
• Model Number Breakdown: "CS" Chainsaw, The first two numbers are the engine cc size generally within, plus or minus 1 cc to 2 cc. The last two numbers are the sub-version within that model series
• Replaced Model: N/A
• Replaced By Model: N/A
• Uses & Applications: Designed for felling trees and cutting wood
• Box Dimensions:
  • CS-2511P-12": Length: 19 in. Width: 11 in. Height: 10 in. Weight: 10 lb.
  • CS-2511P-14": Length: 18 in. Width: 11 in. Height: 11 in. Weight: 11 lb.
• Operator's/Safety Manuals, Parts Catalogs: In Business Portal, go to the "Search" tab and enter the model number in the "Item #" field. From there, select the correct document.
• Accessories: Search for the article titled "What accessories are available for the ECHO® chainsaws?"

Features:

• Handle chainsaw in the world with the most power in its class 25.0cc 2-stroke commercial grade engine
• Lightest gas-powered rear-handle chain saw
• Spring-assist starter reduces starting effort
• Automatic, adjustable clutch-driven oiler for reduced oil consumption
• Two-piece mesh air filter for easy cleaning - G-Force Engine Air Pre-Cleaner™ for longer air filter life
• Palm rest to keep hand secure on saw - Captive bar nut prevents loss of hardware
• Top-mounted adjustable clutch-driven bar oiler operates only when the chain is moving to reduce oil consumption
• Side-access chain tensioner for easy chain adjustment
• Replaceable roller-type chain catcher protects chain drive link from damage if chain derails
• Choke with automatic fast idle for easy starting
• Spring vibration reduction system for operator comfort
• Purge bulb provides fresh fuel to carburetor for easier starting
• Replaceable metal spike for improved user control and leverage

Guide Bars & Chains:

Technical Specifications: For more details on specifications, torque limits, service limits, and special tools, refer to the attached "Service Data."

• Length: 15.7 in.
• Width: 8.4 in.
• Height: 8.3 in.
• Weight: 5.7 lb.
• Engine Type: Air cooled, two-stroke, single cylinder gasoline engine
• Engine Displacement: 25.0 cc
• Bore: 1.378 in.
• Stroke: 1.024 in.
• Compression Ratio: 7.9

• Ignition Type: CDI (Capacitor discharge ignition)
• Spark Plug: NGK CMR7H

• Starter: I-30
• Fuel Tank Capacity: 6.4 fl. oz.
• Oil Tank Capacity: 4.7 fl. oz.
• Oiling System: Automatic adjustable
• Vibration Reduction: Yes
• Sprocket Type: Spur, 6-tooth, 3/8" pitch
• Exhaust: Spark arrestor muffler
• Clutch: Centrifugal
• Idle Speed: 2,800-3,600 RPM
• Wide Open Throttle Speed: 12,700-13,400 RPM
• Compression Pressure: 150 PSI
• Primary Coil Resistance: N/A (This model does not have a primary coil resistance because it uses a special spark advance system. Therefore, no primary resistance readings are available for this unit.)
• Secondary Coil Resistance: 0.8-1.2 ohms
