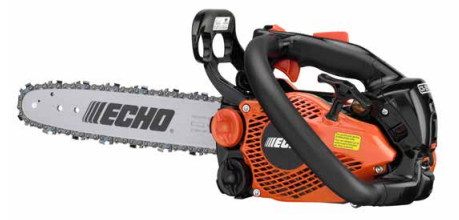

CS-2511T

General Information:

• Production Dates: 2017-Current
• MSRP: (Suggested retail price. Subject to change without notice)
  • CS-2511T-12": $379.99
  • CS-2511T-14": $389.99
• Model Number Breakdown: "CS" Chainsaw, "2511" The first two numbers are the engine cc size generally within, plus or minus 1 cc to 2 cc. The last two numbers are the subversion within that model series
• Replaced Model: N/A
• Replaced By Model: N/A
• Uses & Applications: Designed primarily for professional arborists and tree care work, especially when operating off the ground or in right places, top-handle chainsaws are ideal for pruning branches aloft or removing branches after a tree has been felled
• Box Dimensions:
  • CS-2511T-12": Length: 14 in. Width: 10 in. Height: 11 in. Weight: 9 lb.
  • CS-2511T-14": Length: 14 in. Width: 10 in. Height: 11 in. Weight: 10 lb.
• Operator's/Safety Manuals, Parts Catalogs: In Business Portal, go to the "Search" tab and enter the model number in the "Item #" field. From there, select the correct document.
• Accessories: Search for the article titled "What accessories are available for the ECHO® chainsaws?"

Features:

• Lightest gas-powered chainsaw in North America; 5.2 lbs. (without bar and chain)
• Helps with operator fatigue and greater operator productivity throughout the entire day
• Compact top-handle chainsaw which is very maneuverable in tight spaces and easy to pull through branches when climbing a tree
• 10% more power than the CS-271T and 6% more power than the CS-303T
• Captive bar nuts, debris prevention with fine grid starter cover to prevent debris ingestion
• Adjustable oiler that is top-mounted to match oil flow to conditions
• Spit back plate to keep filter clean from fuel
• Rear mounted two-piece air filter, position away from debris, easy to clean and large surface area

Guide Bars & Chains:

Technical Specifications: For more details on specifications, torque limits, service limits, and special tools, refer to the attached "Service Data."

• Length: 9.6 in.
• Width: 8.1 in.
• Height: 7.7 in.
• Weight: 5.1 lb.
• Engine Type: Air cooled, two-stroke, single cylinder gasoline engine
• Engine Displacement: 25.0 cc
• Bore: 1.378 in.
• Stroke: 1.024 in.
• Compression Ratio: 7.85

• Ignition Type: CDI (Capacitor discharge ignition)
• Spark Plug: NGK CMR7H

• Starter: i-30
• Fuel Tank Capacity: 6.42 fl. oz.
• Oil Tank Capacity: 4.73 fl. oz.
• Oiling System: Automatic adjustable
• Vibration Reduction: Yes
• Sprocket Type: Spur, 6-tooth, 3/8" pitch
• Exhaust: Spark arrestor muffler
• Clutch: Centrifugal
• Idle Speed: 12,700-13,400 RPM
• Wide Open Throttle Speed: 12,700-13,400 RPM
• Compression Pressure: 120-180 PSI
• Primary Coil Resistance: N/A (This model does not have a primary coil resistance because it uses a special spark advance system. Therefore, no primary resistance readings are available for this unit.)
• Secondary Coil Resistance: N/A
