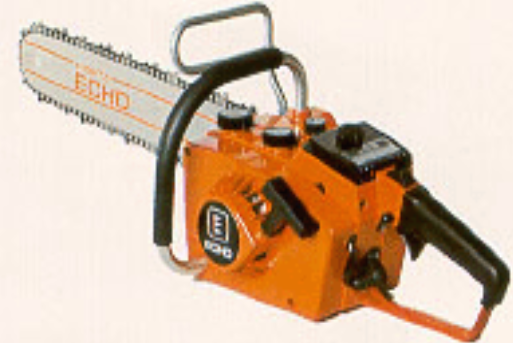

General Information:
- Production Dates: 1972-1983
- MSRP: No MSRP due to age (Suggested retail price. Subject to change without notice)
- Model Number Breakdown: "CS" Chainsaw, "302" The first two numbers are the engine cc size generally within, plus or minus 1 cc to 2 cc. The last number is the sub-version within that model series
- Replaced Model: N/A
- Replaced By Model: N/A
- Uses & Applications: Designed for felling trees and cutting wood
- Box Dimensions: No box dimensions due to age
- Operator's/Safety Manuals, Parts Catalogs: In Business Portal, go to the "Search" tab and enter the model number in the "Item #" field. From there, select the correct document.
- Accessories: Search for the article titled "What accessories are available for the ECHO® chainsaws?"
Features:
- Diaphragm carburetor operates in any position
- Large flywheel for quick, easy starting
- Patented chain oiler offers worry free operation
- Grouped fingertip controls for easy operation
- Large capacity muffler for quiet, comfortable operation
Guide Bars & Chains:
- 12":
- Guide Bar - Part #12A0CD3745C
- Chain - Part #91PX45CQ - 45 drive links, .050 in. gauge, 3/8 in. pitch, 5/32 in. file size
- Chain - Part #91PXL45CQ - 45 drive links, .050 in. gauge, 3/8 in. pitch, 5/32 in. file size
- 14":
- Guide Bar - Part #14A0CD3752C
- Chain - Part #91PX52CQ - 52 drive links, .050 in. gauge, 3/8 in. pitch, 5/32 in. file size
- Chain - Part #91PXL52CQ - 52 drive links, .050 in. gauge, 3/8 in. pitch, 5/32 in. file size
Technical Specifications: There is no Service Data for this model. For more details on specifications, torque limits, service limits, and special tools, reach out to the Product Manager. Please copy Kristina Fink so any information obtained can be added to the Knowledgebase.
- Length: 14.0 in.
- Width: 8.2 in.
- Height: 8.3 in.
- Weight: 9.9 lb.
- Engine Type: Air cooled, two-stroke, single cylinder gasoline engine
- Engine Displacement: 30.1 cc
- Bore: 1.181 in.
- Stroke: 1.102 in.
- Compression Ratio: N/A
- Ignition Type: Flywheel magneto
- Spark Plug: NGK BPM-6A
- Starter: Recoil starter
- Fuel Tank Capacity: 11.8 fl. oz.
- Oil Tank Capacity: 6.8 fl. oz.
- Oiling System: Automatic oiler
- Vibration Reduction: Yes
- Sprocket Type: Spur, 6-tooth, 3/8" pitch
- Exhaust: Spark arrestor muffler
- Clutch: Centrifugal
- Idle Speed: 2,500-2,800 RPM
- Wide Open Throttle Speed: 10,500-11,500 RPM
- Compression Pressure: N/A
- Primary Coil Resistance: N/A (This model does not have a primary coil resistance because it uses a special spark advance system. Therefore, no primary resistance readings are available for this unit.)
- Secondary Coil Resistance: N/A
