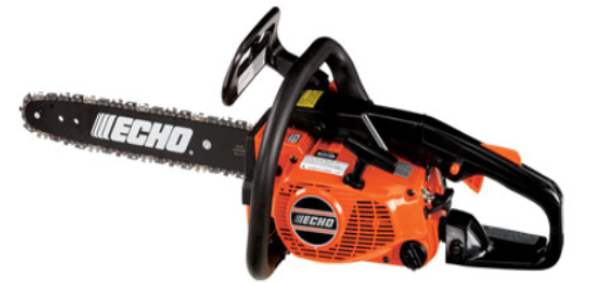

CS-306

General Information:

• Production Dates: 2006-2009
• MSRP: No MSRP due to age (Suggested retail price. Subject to change without notice.)
• Model Number Breakdown: "CS" Chainsaw, "306" The first two numbers are the engine cc size generally within, plus or minus 1 cc to 2 cc. The last number is the sub-version within that model series
• Replaced Model: CS-305
• Replaced By Model: CS-306
• Uses & Applications: Designed for felling trees and cutting wood
• Box Dimensions: No box dimensions due to age
• Operator's/Safety Manuals, Parts Catalogs: In Business Portal, go to the "Search" tab and enter the model number in the "Item #" field. From there, select the correct document.
• Accessories: Search for the article titled "What accessories are available for the ECHO® chainsaws?"

Features:

• Bumper spikes improve control for easier cutting
• Slope Advance Ignition System (SAIS2) automatically senses engine speed and advances ignition timing for optimum performance

Guide Bars & Chains:

• 12” (Standard):
  • Guide Bar - Part #12A4CD3745C
  • Chain - Part #90PX45CQ - 45 drive links, .043 in. gauge, 3/8 in. pitch, 11/64 in. file size
• 14” (Standard):
  • Guide Bar - Part #14A4CD3752C
  • Chain - Part #90PX52CQ - 52 drive links, .043 in. gauge, 3/8 in. pitch, 11/64 in. file size

Technical Specifications: For more details on specifications, torque limits, service limits, and special tools, refer to the attached "Service Data."

• Length: 15.0 in.
• Width: 9.3 in.
• Height: 8.7 in.
• Weight: 7.5 lb.
• Engine Type: Air cooled, two-stroke, single cylinder gasoline engine
• Engine Displacement: 30.1 cc
• Bore: 1.46 in.
• Stroke: 1.10 in.
• Compression Ratio: 7.0

• Ignition Type: CDI (capacitor discharge ignition)
• Spark Plug: NGK BPM-8Y

• Starter: Automatic rewind
• Fuel Tank Capacity: 10.5 fl. oz.
• Oil Tank Capacity: 9.8 fl. oz.
• Oiling System: Automatic with volume adjuster
• Vibration Reduction: Yes
• Sprocket Type: Spur, 6-tooth, 3/8 in. pitch
• Exhaust: Spark arrestor muffler
• Clutch: Centrifugal type
• Idle Speed: 2,700-3,300 RPM
• Wide Open Throttle Speed: 10,000-12,000 RPM
• Compression Pressure: 135 PSI
• Primary Coil Resistance: 160-200 ohms
• Secondary Coil Resistance: 1.9-2.3 ohms
