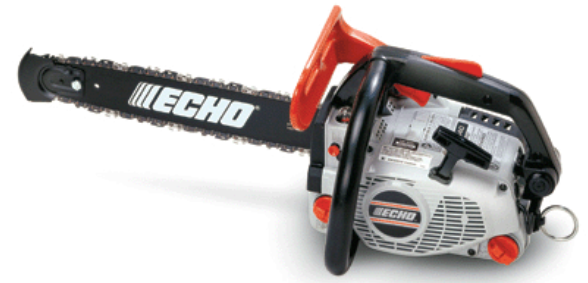

CS-340

General Information:

• Production Dates: 2002-2003
• MSRP: (Suggested retail price. Subject to change without notice.)
  • CS-340-12": $279.99
  • CS-340-14": $289.99
  • CS-340-16": $299.99
• Model Number Breakdown: "CS" Chainsaw, "340" The first two numbers are the engine cc size generally within, plus or minus 1 cc to 2 cc. The last number is the subversion within that model series
• Replaced Model: CS-3400
• Replaced By Model: CS-341
• Uses & Applications: Designed for felling trees and cutting wood
• Box Dimensions: No box dimensions due to age
• Operator's/Safety Manuals, Parts Catalogs: In Business Portal, go to the "Search" tab and enter the model number in the "Item #" field. From there, select the correct document.
• Accessories: Search for the article titled "What accessories are available for the ECHO® chainsaws?"

Features:

• Slope Advance Ignition System (SAIS2)
• Side access chain tensioner
• Automatic adjustable oiler
• Inertia-type chain brake
• Throttle lock-out and chain catcher - Lanyard ring

Guide Bars & Chains:

Technical Specifications: For more details on specifications, torque limits, service limits, and special tools, refer to the attached "Service Data."

• Length: 10.2 in.
• Width: 9.2 in.
• Height: 8.7 in.
• Weight: 7.3 lb.
• Engine Type: Air cooled, two-stroke, single cylinder gasoline engine
• Engine Displacement: 33.4 cc
• Bore: 1.535 in.
• Stroke: 1.102 in.
• Compression Ratio: N/A

• Ignition Type: CDI (Capacitor discharge ignition)
• Spark Plug: NGK BPM-8Y

• Starter: Recoil Starter
• Fuel Tank Capacity: 7.6 fl. oz.
• Oil Tank Capacity: 5.1 fl. oz.
• Oiling System: Automatic adjustable
• Vibration Reduction: Yes
• Sprocket Type: Spur, 6-tooth, 3/8 in. pitch
• Exhaust: Spark arrestor muffler
• Clutch: Centrifugal
• Idle Speed: 2,700-3,300 RPM
• Wide Open Throttle Speed: 10,500-11,500 RPM
• Compression Pressure: 120 PSI
• Primary Coil Resistance: N/A (This model does not have a primary coil resistance because it uses a special spark advance system. Therefore, no primary resistance readings are available for this unit.)
• Secondary Coil Resistance: 1.3-1.7 ohms
