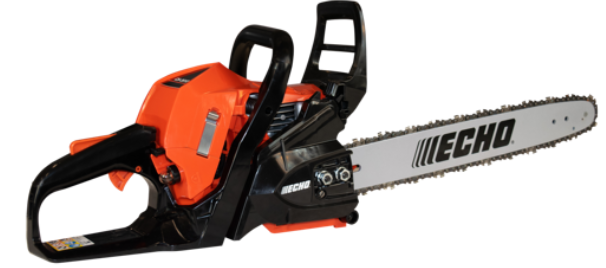

CS-3510

General Information:

• Production Dates: 2020-Current
• MSRP: (Suggested retail price. Subject to change without notice.)
  • CS-3510-16": $299.99
• Model Number Breakdown: "CS" Chainsaw, "3510" The first two numbers are the engine cc size generally within, plus or minus 1 cc to 2 cc. The last two numbers are the sub-version within that model series
• Replaced Model: CS-352 & CS-370
• Replaced By Model: N/A
• Uses & Applications: Designed for felling trees and cutting wood
• Box Dimensions:
  • CS-3510-16": Length: 20 in. Width: 11 in. Height: 12 in. Weight: 13 lb.
• Operator's/Safety Manuals, Parts Catalogs: In Business Portal, go to the "Search" tab and enter the model number in the "Item #" field. From there, select the correct document.
• Accessories: In the Knowledge Base, search the accessory name (for example, "kick guard") and view the related article to confirm compatibility with this model.

Features:

• Lightest chain saw in its class
• Highest power-to-weight ratio in its class
• 3-point spring vibration reduction system for operator comfort
• Choke with automatic fast idle for easy starting
• Purge bulb provides fresh fuel to carburetor for easier starting
• Side-access chain tensioner for easy chain adjustment
• Replaceable roller-type chain catcher; protects operator and others if chain derails and protects chain drive link from damage
• Automatic clutch-driven bar oiler; operates only when the chain is moving to reduce oil consumption
• Dual-post chain brake lever for durability
• i-30 starter reduces starting effort by 30%
• Translucent fuel and oil tanks to easily see level
• Throttle lock-out for safety
• Momentary stop switch automatically returns to "on" position
• Two-way oil tank breather for reduced oil leakage during storage
• Large 28 mm/1.1" fuel/oil openings are easy to fill

Guide Bars & Chains:

• 16" (Standard) :
  • Guide Bar - Part #16A0CD3757C
  • Chain - Part #91PX57CQ - 57 drive links, .050 in. gauge, 3/8 in. pitch, 7/32 in. file size

Technical Specifications: For more details on specifications, torque limits, service limits, and special tools, refer to the attached "Service Data."

• Length: 15.2 in.
• Width: 9.2 in.
• Height: 10.7 in.
• Weight: 8.2 lb.
• Engine Type: Air cooled, two-stroke, single cylinder gasoline engine
• Engine Displacement: 34.4 cc
• Bore: 1.575 in.
• Stroke: 1.079 in.
• Compression Ratio: 7.4

• Ignition Type: CDI (capacitor discharge ignition)
• Spark Plug: NGK BPM-8Y

• Starter:
• Fuel Tank Capacity: 9.5 fl. oz.
• Oil Tank Capacity: 7.8 fl. oz.
• Oiling System: Automatic oiler
• Vibration Reduction: Yes
• Sprocket Type: Spur, 6-tooth, 3/8" pitch
• Exhaust: Spark arrestor muffler
• Clutch: Centrifugal type
• Idle Speed: 2,800-3,000 RPM
• Wide Open Throttle Speed: 12,800-13,000 RPM
• Compression Pressure:
• Primary Coil Resistance: N/A (This model does not have a primary coil resistance because it uses a special spark advance system. Therefore, no primary resistance readings are available for this unit.)
• Secondary Coil Resistance: 2.5-2.9 ohms
