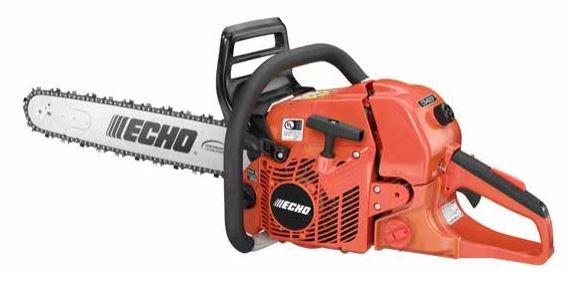

CS-620P

General Information:

• Production Dates: 2013-Current
• MSRP: (Suggested retail price. Subject to change without notice.)
  • CS-620P-16": $549.99
  • CS-620P-18": $549.99
  • CS-620P-20": $559.99
  • CS-620P-24": $559.99
  • CS-620P-27": $569.99
• Model Number Breakdown: "CS" Chainsaw, The first two numbers are the engine cc size generally within, plus or minus 1 cc to 2 cc. The last number is the sub-version within that model series
• Replaced Model: N/A
• Replaced By Model: N/A
• Uses & Applications: Designed for felling trees and cutting wood
• Box Dimensions:
  • CS-620P-16": Length: 40 in. Width: 12 in. Height: 12 in. Weight: 26 lb.
  • CS-620P-18": Length: 40 in. Width: 12 in. Height: 12 in. Weight: 28 lb.
  • CS-620P-20": Length: 40 in. Width: 12 in. Height: 12 in. Weight: 30 lb.
  • CS-620P-24": Length: 40 in. Width: 12 in. Height: 12 in. Weight: 32 lb.
  • CS-620P-27": Length: 40 in. Width: 12 in. Height: 12 in. Weight: 36 lb.
• Operator's/Safety Manuals, Parts Catalogs: In Business Portal, go to the "Search" tab and enter the model number in the "Item #" field. From there, select the correct document.
• Accessories: In the Knowledge Base, search the accessory name (for example, "kick guard") and view the related article to confirm compatibility with this model.

Features:

Guide Bars & Chains: UPDATE THIS SECTION

• 16" (Standard):
  • Guide Bar - Part #16D0PS3860C
  • Chain - Part #72LPX60CQ - 60 drive links, .050 in. gauge, 3/8 in. pitch, 7/32 in. file size
• 18" (Standard):
  • Guide Bar - Part #18D0PS3866C
  • Chain - Part #LPX66CQ - 66 drive links, .050 in. gauge, 3/8 in. pitch, 7/32 in. file size
• 20" (Standard):
  • Guide Bar - Part #20D0PS3870C
  • Chain - Part #72LPX70CQ - 70 drive links, .050 in. gauge, 3/8 in. pitch, 7/32 in. file size
• 24" (Standard):
  • Guide Bar - Part #24D0PS3881C
  • Chain - Part #72LPX81CQ - 81 drive links, .050 in. gauge, 3/8 in. pitch, 7/32 in. file size

• 27" (Standard):
  • Guide Bar - Part #27D0PS3893C
  • Chain - Part #72LPX93CQ - 93 Drive Links, .050 in. gauge, 3/8 in. pitch, 7/32 in. file size

Technical Specifications: For more details on specifications, torque limits, service limits, and special tools, refer to the attached "Service Data."

• Length: 17.6 in.
• Width: 9.7 in.
• Height: 11.7 in.
• Weight: 13.7 lb.
• Engine Type: Air cooled, two-stroke, single cylinder gasoline engine
• Engine Displacement: 59.8 cc
• Bore: 1.772 in.
• Stroke: 1.480 in.
• Compression Ratio: 6.9

• Ignition Type: CDI (capacitor discharge ignition)
• Spark Plug: NGK BPM-8Y

• Starter: Automatic rewind
• Fuel Tank Capacity: 22.0 fl. oz.
• Oil Tank Capacity: 10.1 fl. oz.
• Oiling System: Automatic with volume adjuster
• Vibration Reduction: Yes
• Sprocket Type: Floating rim, 7-tooth, 3/8 in. pitch
• Exhaust: Spark arrestor muffler
• Clutch: Centrifugal type
• Idle Speed: 2,600-3,300 RPM
• Wide Open Throttle Speed: 12,600-13,400 RPM
• Compression Pressure: 154 PSI
• Primary Coil Resistance: N/A (This model does not have a primary coil resistance because it uses a special spark advance system. Therefore, no primary resistance readings are available for this unit.)
• Secondary Coil Resistance: 2.6-3.0 ohms
