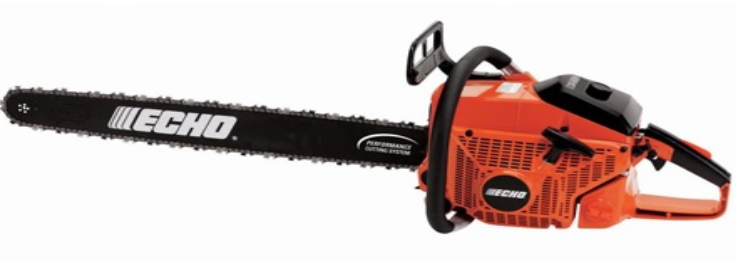

CS-800P

General Information:

• Production Dates: 2014-2020
• MSRP: (Suggested retail price. Subject to change without notice.)
  • CS-800P-24": $799.99
  • CS-800P-27": $809.99
  • CS-800P-32": $819.99
• Model Number Breakdown: "CS" Chainsaw, "800" The first two numbers are the engine cc size generally within, plus or minus 1 cc to 2 cc. The last number is the sub-version within that model series
• Replaced Model: CS-8000
• Replaced By Model: CS-7310P
• Uses & Applications: Designed for felling trees and cutting wood
• Box Dimensions:
  • CS-800P-24": Length: 16 in. Width: 18 in. Height: 26 in. Weight: 29 lb.
  • CS-800P-27": Length: 19 in. Width: 18 in. Height: 26 in. Weight: 29 lb.
  • CS-800P-32": Length: 40 in. Width: 20 in. Height: 28 in. Weight: 31 lb.
• Operator's/Safety Manuals, Parts Catalogs: In Business Portal, go to the "Search" tab and enter the model number in the "Item #" field. From there, select the correct document.
• Accessories: In the Knowledge Base, search the accessory name (for example, "kick guard") and view the related article to confirm compatibility with this model.

Features:

• Inertia-type chain brake for safety
• Tool-less air filter cover for easy access
• Vibration-reductions system for operator comfort
• Automatic adjustable oiler with manual override
• Performance cutting system
• Replaceable metal bumper spike

Guide Bars & Chains:

• 20":
  • Guide Bar - Part #20D0PS3870C
  • Chain - Part #72LPX70CQ  - 70 drive links, .050 in. gauge, 3/8 in. pitch, 7/32 in. file size
• 24" (Standard):
  • Guide Bar - Part #24D0PS3881C
  • Chain - Part #72LPX81CQ - 81 drive links, .050 in. gauge, 3/8 in. pitch, 7/32 in. file size
• 27" (Standard):
  • Guide Bar - Part #27D0PS3893C
  • Chain - Part #72LPX93CQ - 93 drive links, .050 in. gauge, 3/8 in. pitch, 7/32 in. file size
• 32" (Standard):
  • Guide Bar - Part #32D0PS3805C
  • Chain - Part #72LPX105CQ - 105 drive links, .050 in. gauge, 3/8 in. pitch, 7/32 in. file size
• 36":
  • Guide Bar - Part #36D0PS3816C
  • Chain - Part #72LPX116CQ - 116 drive links, .050 in. gauge, 3/8 in. pitch, 7/32 in. file size

Technical Specifications: For more details on specifications, torque limits, service limits, and special tools, refer to the attached "Service Data."

• Length: 16.6 in.
• Width: 9.6 in.
• Height: 12.2 in.
• Weight: 16.8 lb.
• Engine Type: Air cooled, two-stroke, single cylinder gasoline engine
• Engine Displacement: 80.7 cc
• Bore: 2.047 in.
• Stroke: 1.496 in.
• Compression Ratio: 7.3

• Ignition Type: CDI (capacitor discharge ignition)
• Spark Plug: NGK BPM-7A

• Starter: Automatic rewind
• Fuel Tank Capacity: 27.7 fl. oz.
• Oil Tank Capacity: 13.5 fl. oz.
• Oiling System: Adjustable automatic oil pump and manual oil pump
• Vibration Reduction: Yes
• Sprocket Type: Floating rim, 7-tooth, 3/8 in. pitch
• Exhaust: Spark arrestor muffler
• Clutch: Centrifugal type
• Idle Speed: 2,000-3,000 RPM
• Wide Open Throttle Speed: 11,500-12,500 RPM
• Compression Pressure: 142 PSI
• Primary Coil Resistance: N/A (This model does not have a primary coil resistance because it uses a special spark advance system. Therefore, no primary resistance readings are available for this unit.)
• Secondary Coil Resistance: 1.8-2.2 ohms
